AIR CURTAINS: MODELS AND APPLICATIONS
Minibel:
Up to 1.8 m
Kiosks, Fast Food and small sized shops. Restaurants and places with usually closed door or automatic door when low pedestrian flow.
Eco (E only), Optima and Recessed Optima:
Up to 2.2 m
Small and medium sized premises. Restaurants, shops and places with a medium and high pedestrian flow. Creation of different environment zones. Protection against dust, fumes, pollutants and insects. False ceiling installations. Isolation and sealing of smoking areas.
Windbox, Dam, Recessed Windbox, WEC, REC, Deco, Zen, Rund (M,G only), Duojet(M,G only), RotoWind (M,G only), VariWind, Kool (A only) and Compact (M/A only):
S up to 2.5 m, M up to 2.8 m and G up to 3.2 m
Medium and large sized premises with a high pedestrian flow. Protection against dust, fumes, pollutants and insects. Cold rooms. False ceiling installations. Isolation and sealing of smoking areas. Standard and design units. EC air curtains. Revolving doors air curtains. Tailor made units.
Windbox B, L, XL:
B up to 4 m, L, up to 4.5 m, XL Up to 7 m
Medium and large sized premises with a high pedestrian flow. Industrial doors. Protection against dust, fumes, pollutants and insects. Cold rooms. False ceiling installations.
Max:
Up to 5 m
Industrial doors. Loading dock. Vertical Installation to one side of the door or at each side of the door. Horizontal installation.

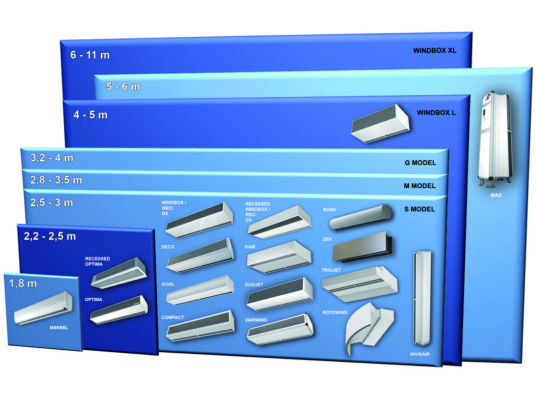

AIR CURTAINS SELECTION CHART
Airtecnics has a wide
range of air curtains that covers all applications.
The following selection chart shows all available models and each recommended installation height (horizontal installation).
When selecting an air curtain we should always consider the jet strength to be sure that the air barrier will cover the whole opening.
Once you selected the group of air curtains with the right jet, then you should continue with other factors like heated/unheated, free hanging/recessed, design/standard/industrial, tailor made, insect protection, special finishes, etc… described in each model characteristics.
Airtecnics expert consultants with their extensive experience are at your disposal to help you choose the right air curtain for all applications.
|
